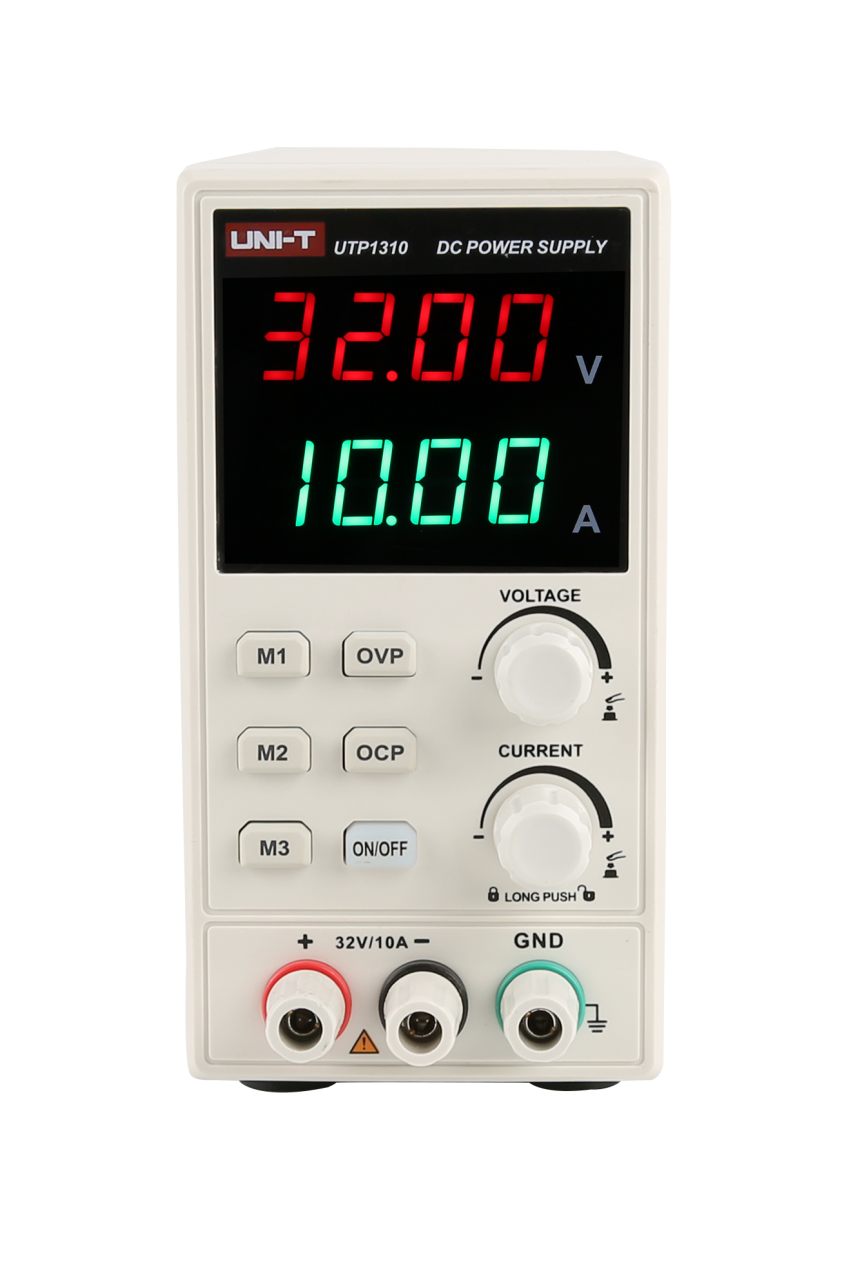

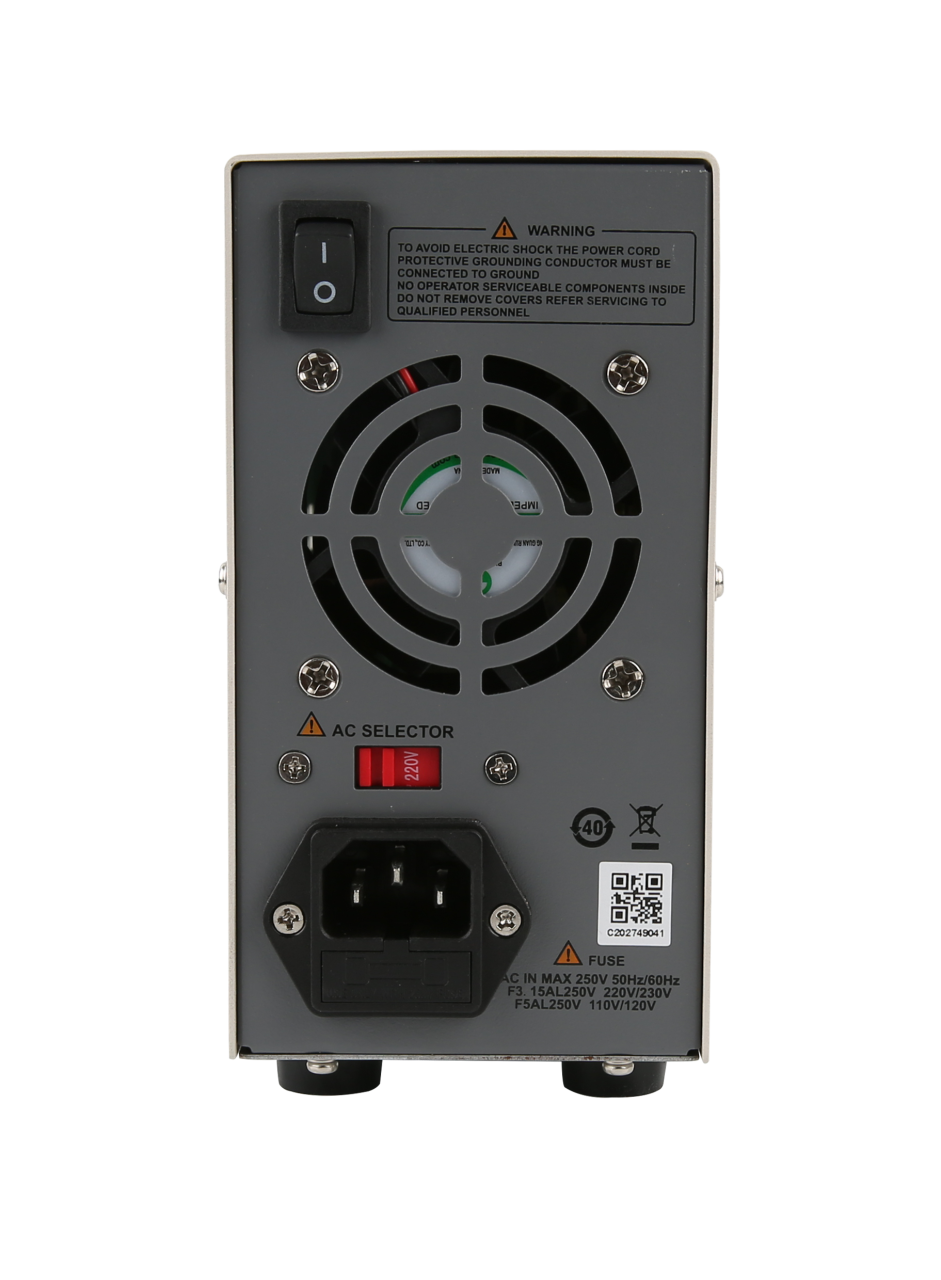

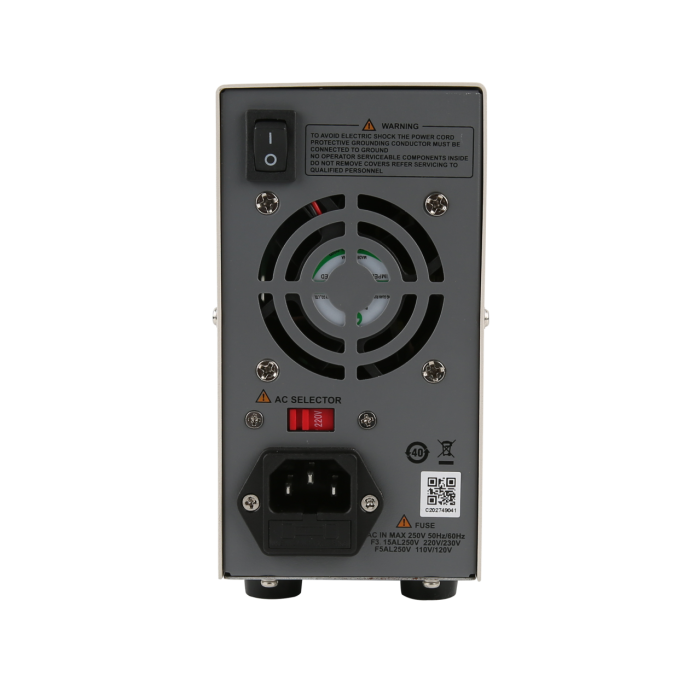

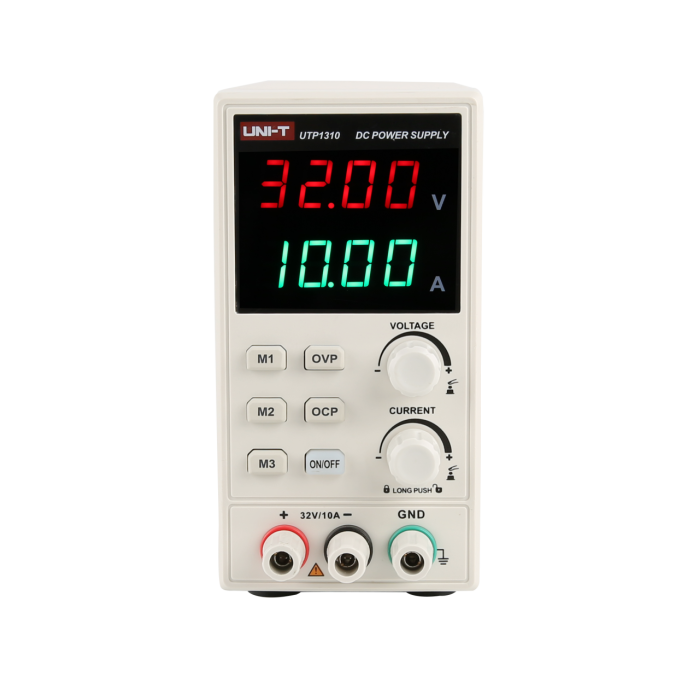

Unit UTP-1310 Anahtarlamalı DC Güç Kaynağı

Dayzip 4 Port PoE Akıllı Yönetilebilir Switch
4*10/100M
2 Uplink,
Mobil Uygulama İle Kontrol
Standart güç 15.4W/port, Maksimum güç: 30W/port;
Kapasite: 5.6Gbps, MAC table:2K;
Toplam güç 52W

SMPS D CLASS MONO POWER AMPLİFİKATÖR 100V (TRAFOLU)

2 X XLR + 2 X 6.35 MM JACK SİNYAL GİRİŞİ
2 X SPEAKON KONNEKTÖR
ÖN PANELDE PROTECT, CLIP, SİGNAL POWER İZLEME LEDLERİ
KISA DEVRE VE AŞIRI YÜK KORUMA
ALÜMİNYUM ÖN PANEL

Tp-link LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+
Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
Plug and Play: Simply plug and play for instant connectivity with no configuration required.
Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
DONANIM ÖZELLİKLERİ
Arabirim • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı Fanless
Kurulum • Desktop
• Wall Mounting
Güç Kaynağı External Power Adapter (Output: 53.5 VDC / 1.31 A)
PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• PoE Budget: 62 W
Boyutlar ( W X D X H ) 6.2×3.9×1.0 in (158×99×25 mm)
Maks. Güç Tüketimi • 5.53 W (220 V/50 Hz. no PD connected)
• 71.61 W (220 V/50 Hz. with 62 W PD connected)
Max Heat Dissipation • 18.81 BTU/h (220 V/50 Hz. no PD connected)
• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 16 Gbps
Paket Yönlendirme Hızı 11.9 Mpps
MAC Adres Tablosu 4K
Jumbo Frame 16 KB
YAZILIM ÖZELLİKLERİ
Gelişmiş Özellikler • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery Button (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Technology
Transfer Metodu Store-And-Forward
DİĞERLERİ
Sertifika FCC, CE, RoHS
Paket İçeriği • LS108GP
• Power Adapter
• Installation Guide
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
