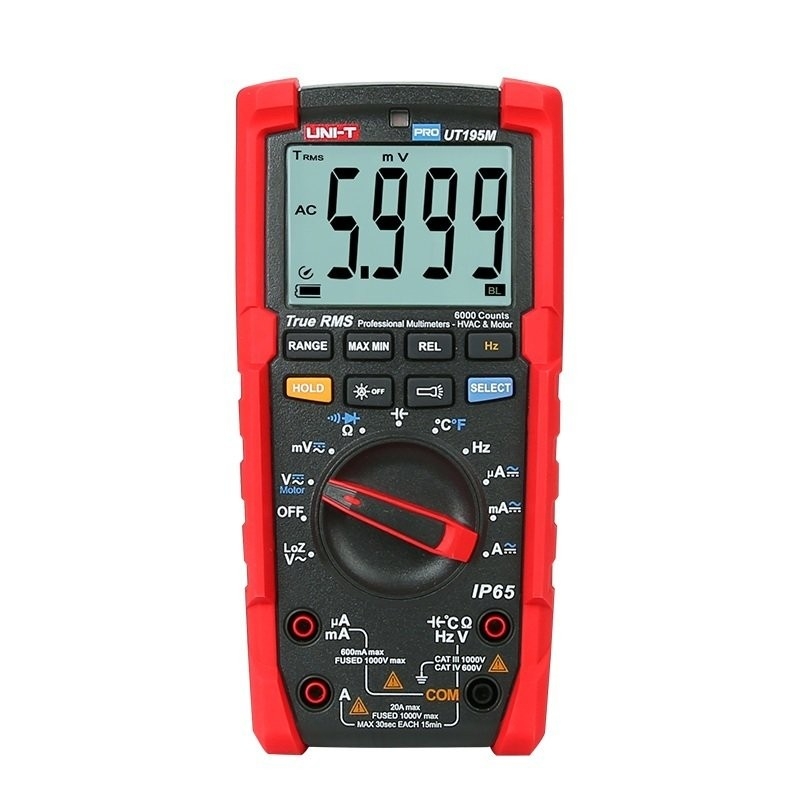

Unit UT-195M True RMS Profesyonel Endüstriyel Multimetre

Max.Dc Akım

:

20 Amper

Max.Ac Akım

:

20 Amper

Max.Dc Volt

:

1000 Dc Volt

Max.Ac Volt

:

750 Ac Volt

True RMS

:

Var

Kullanım Alanı

:

El Tipi Multimetre

Specifications

Range

Best Accuracy

Model

UT195M

DC voltage

600mV ~ 1000V

±(0.5%+3)

AC voltage

600mV ~ 750V

±(0.7%+3)

LoZ ACV

600.0V

±(2.0%+3)

DC current (A)

600.0μA ~ 20A

±(0.8%+3)

AC current (A)

600.0μA ~ 20A

±(1.0%+3)

Resistance (Ω)

600.0Ω ~ 60.00MΩ

±(0.8%+2)

Capacitance

6.000nF ~ 60.00mF

±(3%+5)

Frequency

60.00Hz ~ 40.00MHz

±(0.1%+4)

Duty ratio

0.1% ~ 99.9%

N/A

Temperature °C

-40 ~ 1000°C

±(1.5%+4°C)

Temperature °F

-40 ~ 1832°F

±(2.0%+5°F)

Features

Display count

6000

Display interface (HTN)

Single display

Measurement of digital conversion rate

times/s

3

True RMS

√

AC voltage frequency response

45 ~1kHz

AC current frequency response

45 ~1kHz

Low pass filter test

√ (1kHz 3dB attenuation)

Diode/Continuity test

3V

Auto/Manual range

√

Auto power off

√

Continuity buzzer

√

Low battery indication

√

Data hold

√

MAX/MIN

√

Function selection

√

Flashlight

√

Auto backlight

√

Working temperature

0 °C ~40 °C

2m drop proof

√

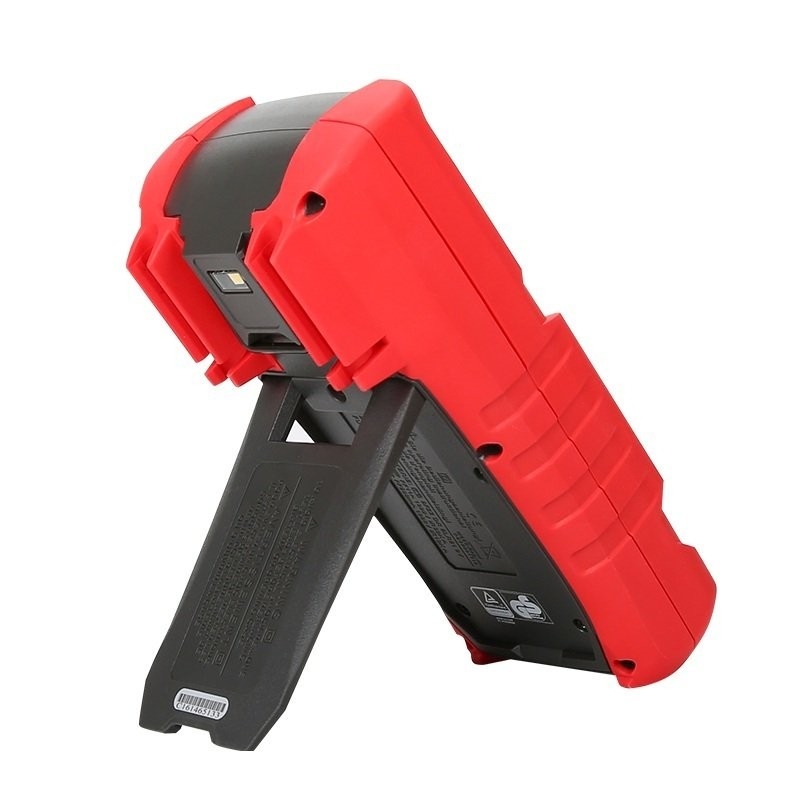

Protection rating

IP65

General Characteristics

Power supply

9V 6F22 carbon-zinc or 6LR61 alkaline battery

LCD size

66mm × 51mm

Device color

Red and grey

Device weight

473g

Device size

195mm × 95mm × 58mm

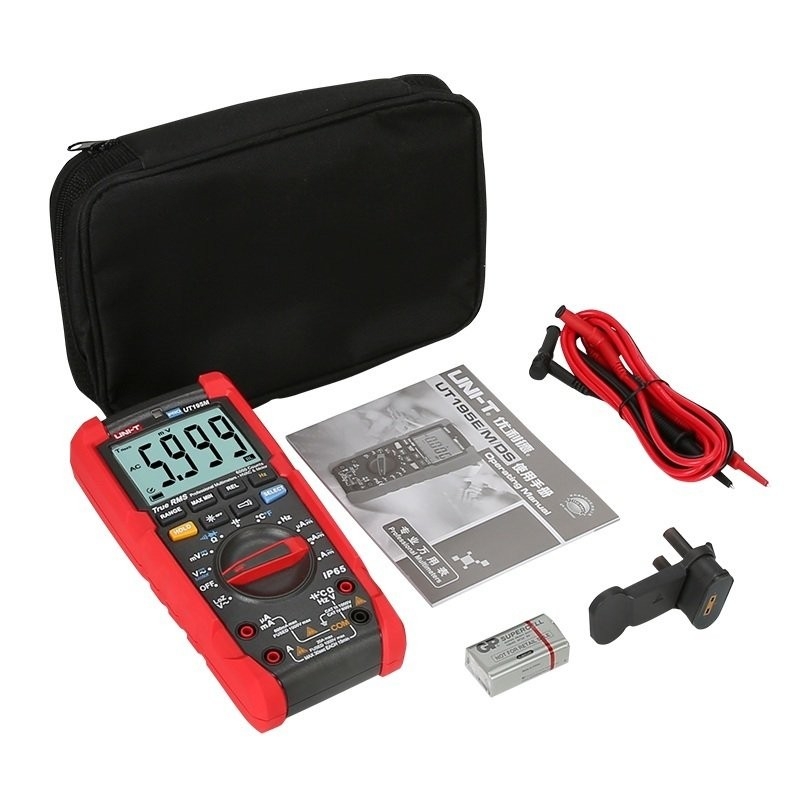

Standard accessories

Test probes, battery, carrying bag

Standard individual packing

Gift box, user manual, point type temperature probe

Standard quantity per carton

6pcs

Standard carton size

580mm × 375mm × 215mm

Standard carton gross weight
