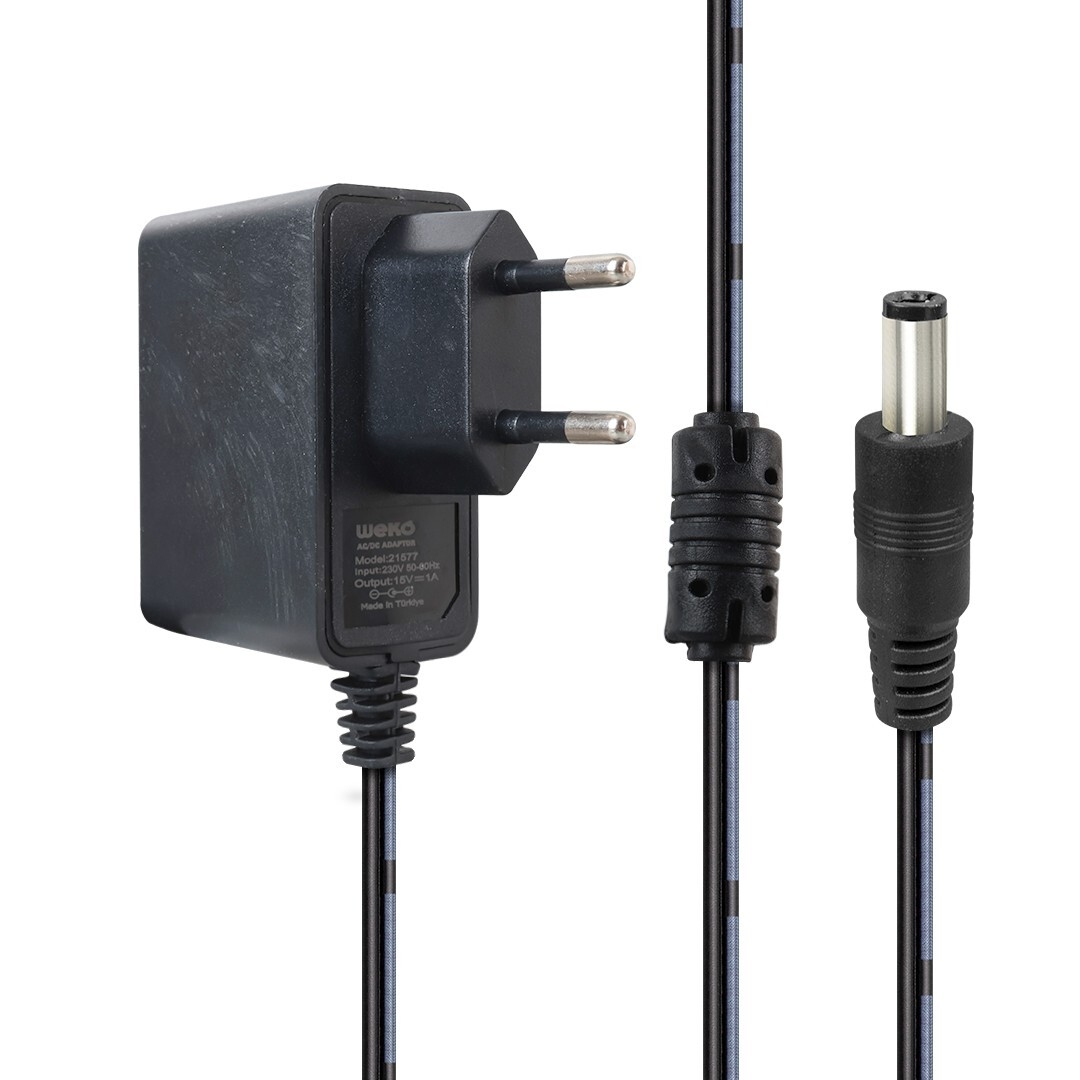

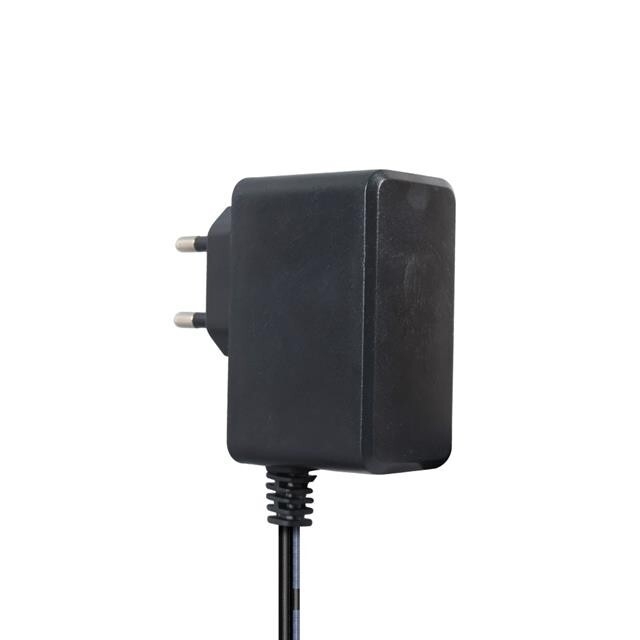

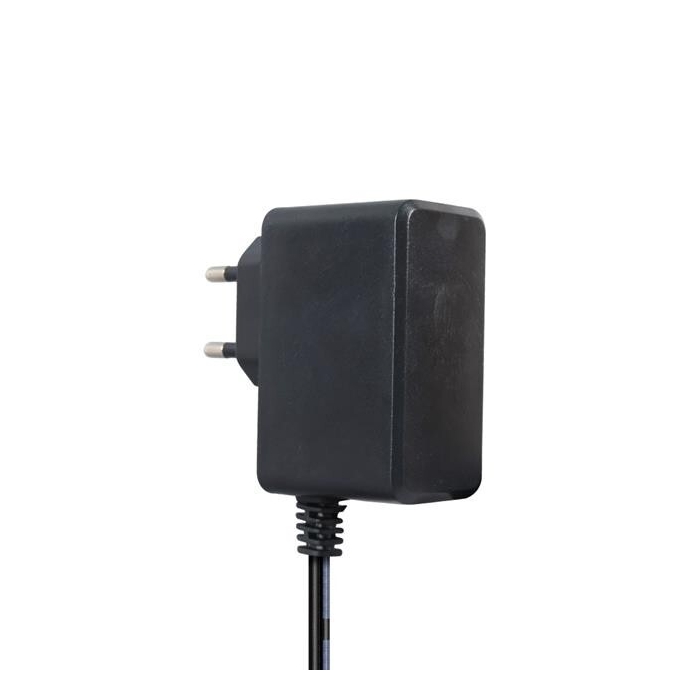

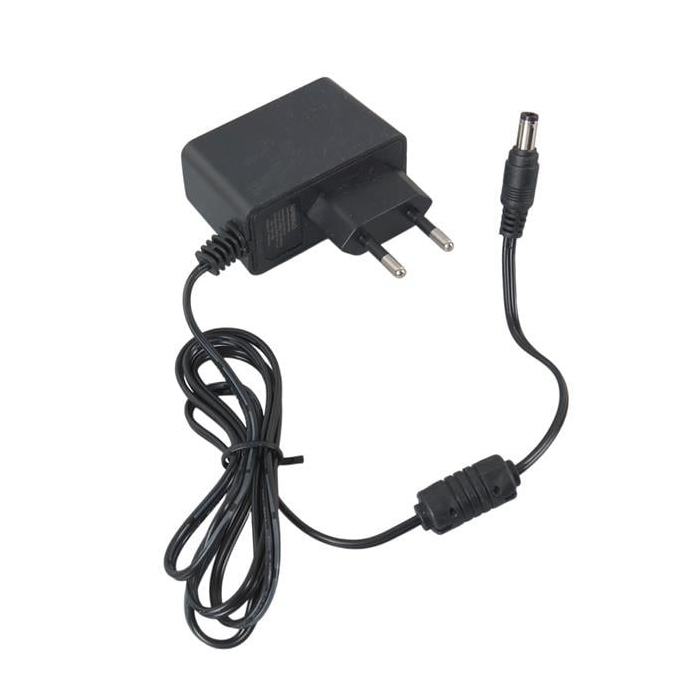

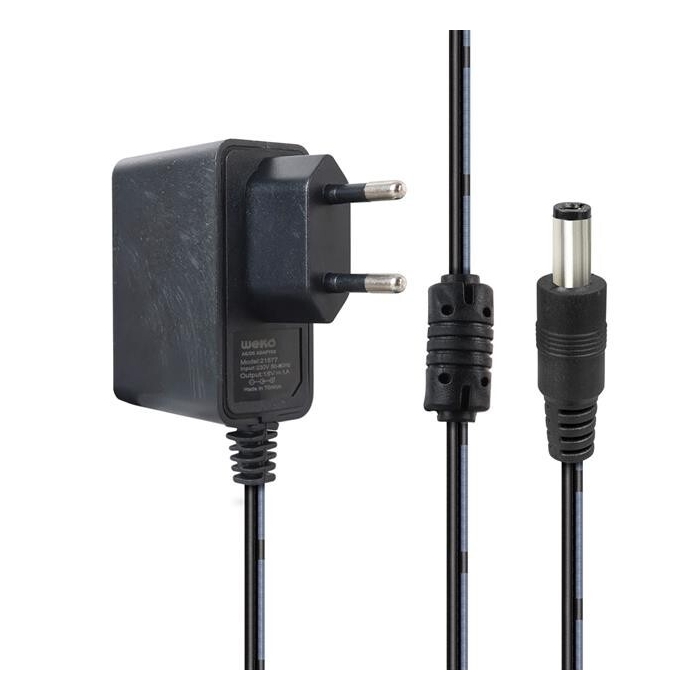

Weko 15 Volt - 1 Amper - 15 Watt 5.5*2.5 Uçlu Priz Tipi Adaptör

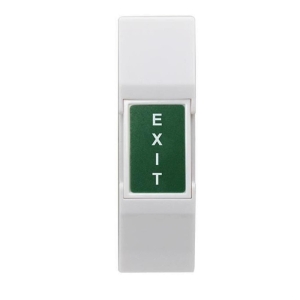

12V Sıva Üstü Çıkış Butonu

Tp-link Omada DS106P Omada 6-Port 10/100 D.Sw 4-Port PoE+
DONANIM ÖZELLİKLERİ
Arabirim • 6× 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı Fanless
Fiziksel Güvenlik Kilidi Yes
Harici Güç Kaynağı External Power Adapter (Output: 53.5 V DC / 1.31 A)
Paket Yönlendirme Hızı 0.8928 Mpps
PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 67 W
MAC Adres Tablosu 2K
Jumbo Frame 2 KB
Switching Kapasitesi 1.2 Gbps
Boyutlar ( W X D X H ) 6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)
Maks. Güç Tüketimi • 2.52 W (220 V / 50 Hz, no PD connected)
• 75.4 W (220 V / 50 Hz, with 67 W PD connected)
Max Heat Dissipation • 8.59 BTU/h(no PD connected)
• 257.11 BTU/h(with 67 W PD connected)
YAZILIM ÖZELLİKLERİ
İletim Metodu Store-And-Forward
Gelişmiş Fonksiyonlar • Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode: Ports 1–4
• Priority Mode: Ports 1–2
• PoE Auto Recovery: Ports 1-4
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
DİĞERLERİ
Sertifika FCC, CE, RoHS
Paket İçeriği • DS106P
• Power Adapter
• Installation Guide
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
