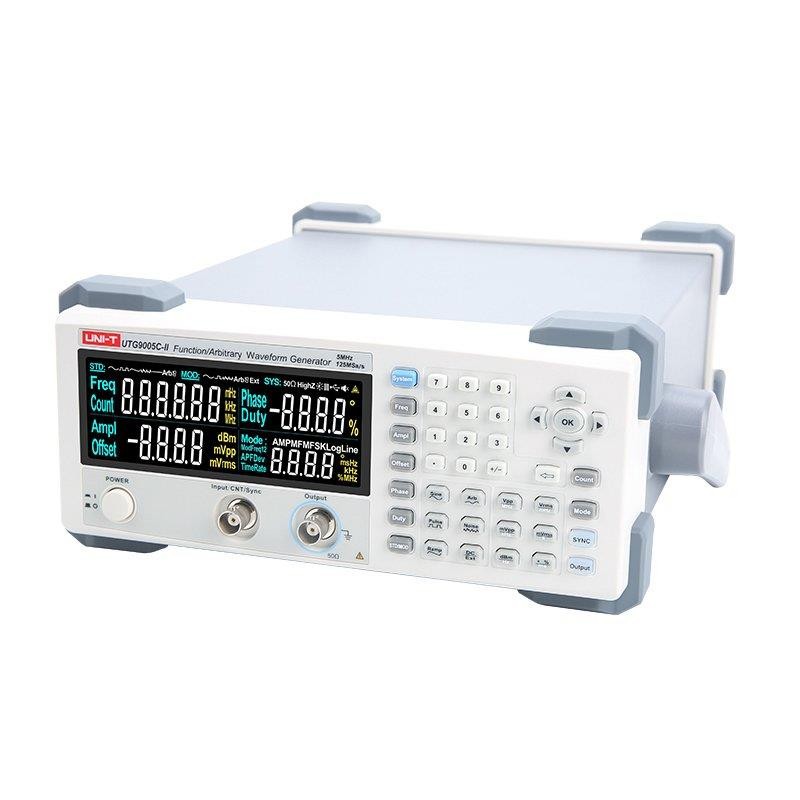

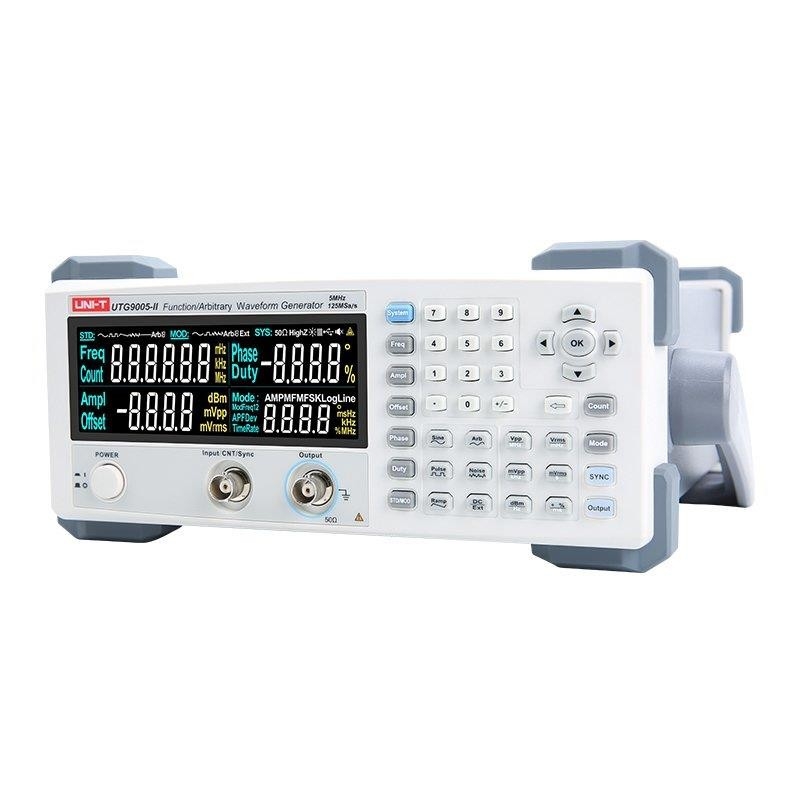

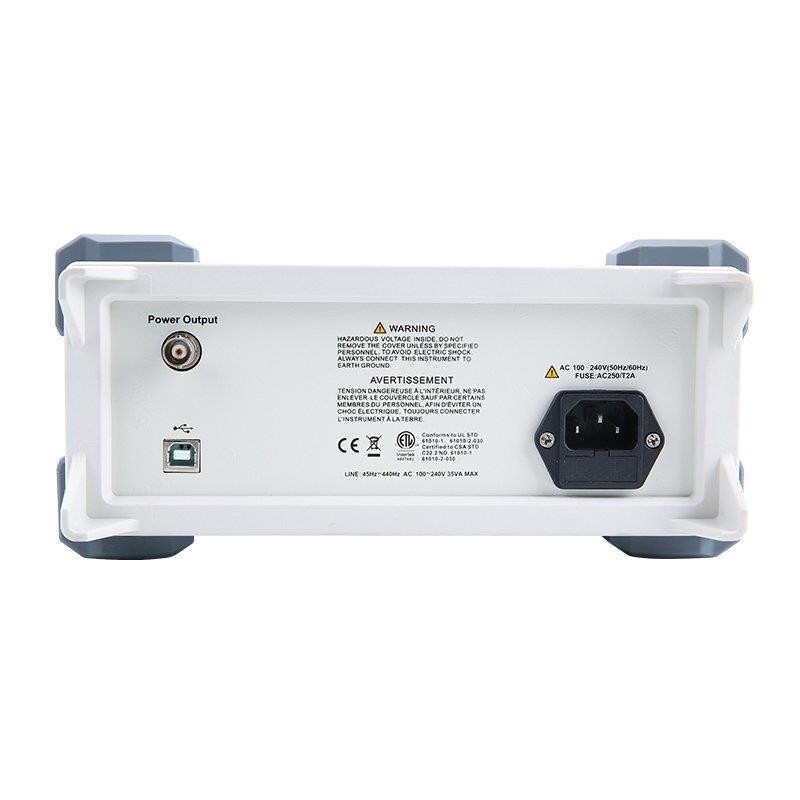

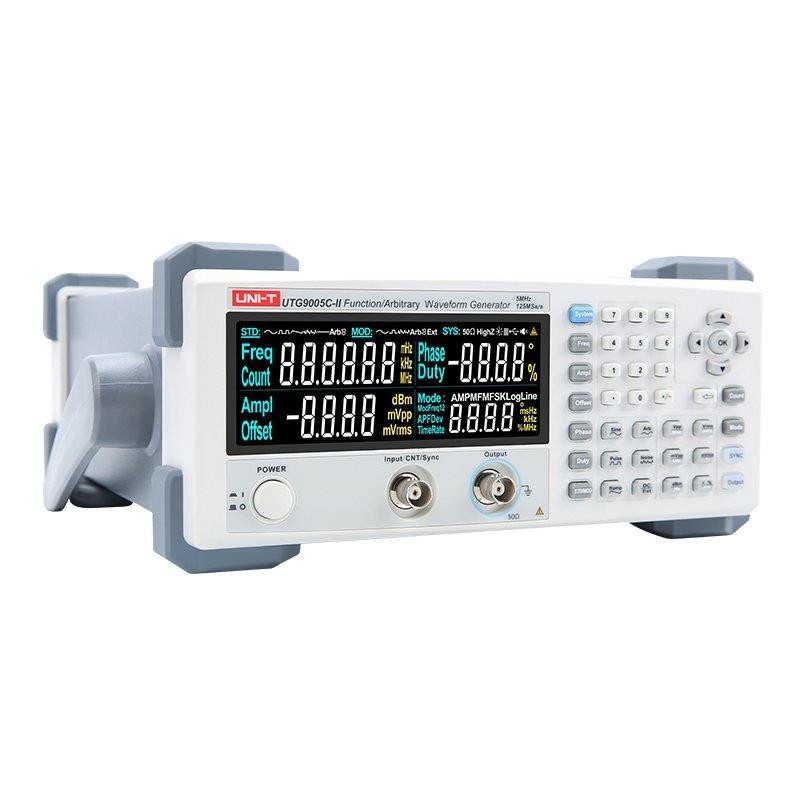

Unit UTG-9005C-II Fonksiyon Jeneratörü

Tp-Link EAP610 AX1800 1800Mbps 1 Port Access Point
DONANIM ÖZELLİKLERİ
Arabirim 1× Gigabit Ethernet (RJ-45) Port
Buton Reset
Güç Kaynağı • 802.3at PoE
• 48 V Passive PoE
• 12 V / 1 A DC (Power Adapter included)
Güç Tüketimi 11.0W (For PoE);
9.9W (For DC)
Boyutlar ( W X D X H ) V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Anten Tipi Internal Omni Antenna
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Montaj • Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting
KABLOSUZ ÖZELLİKLERİ
Coverage 115㎡(1250 ft²)***
Wireless Client Capacity 250+**
Concurrent Clients 250+**
Kablosuz Standartlar IEEE 802.11ax/ac/n/g/b/a
Frekans 2.4 GHz and 5 GHz
Bağlantı Hızı • 5 GHz: Up to 1201 Mbps
• 2.4 GHz: Up to 574 Mbps
Kablosuz Fonksiyonlar • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Kablosuz Güvenlik • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
İletim Gücü • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
YÖNETİM
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
Cloud Access Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller
Eposta Uyarı Yes
LED Açık/Kapalı Kontrolü Yes
MAC Erişim Kontrolü Yönetimi Yes
SNMP v1, v2c, v3
Yerel/Uzak Sistem Günlüğü Kaydı Local/Remote Syslog
SSH Yes
Web-tabanlı Yönetim HTTP/HTTPS
L3 Yönetim Yes
Multi-site Yönetim Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği • EAP610
• Power Adapter
• Ceiling/ Wall Mounting Kits
• Installation Guide
Sistem Gereksinimleri Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
