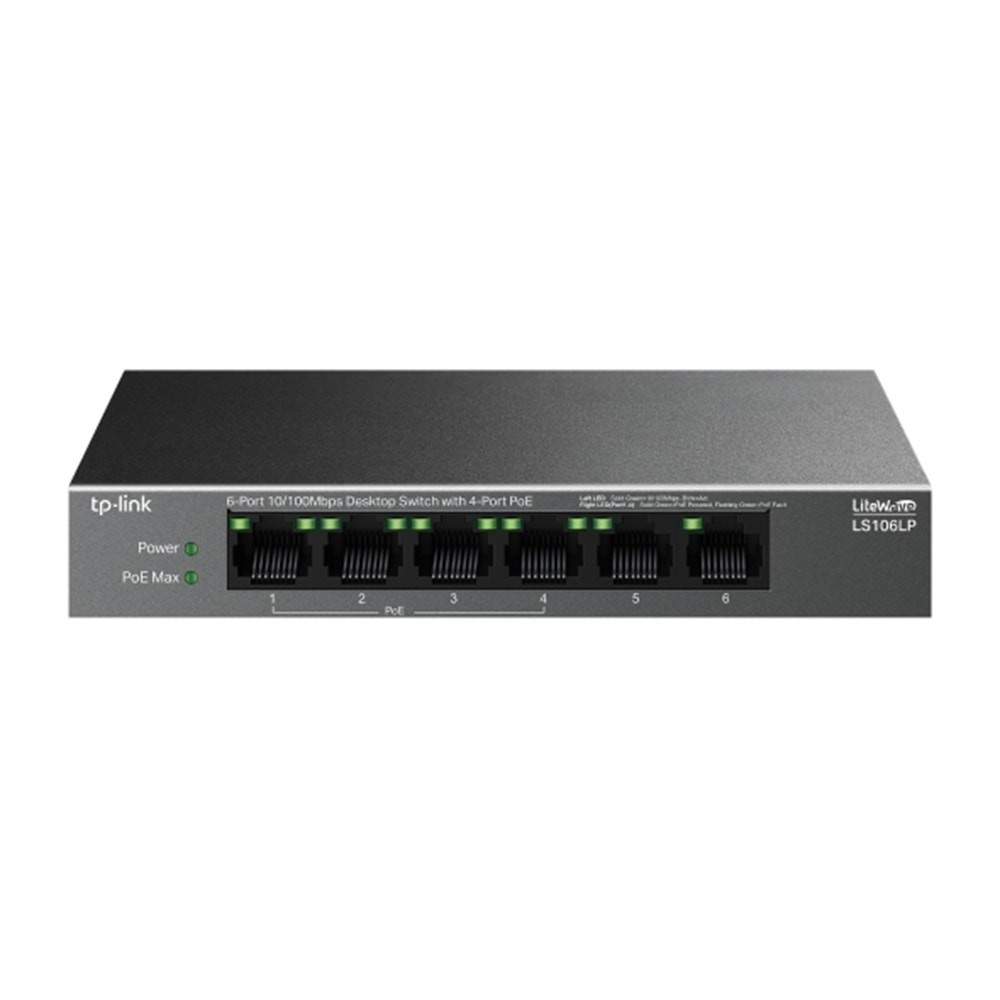

Tp-link LS106LP 4-Port PoE ile 6-Port 10/100Mbps Masaüstü Switch

TP-Link Omada DS108GP 8-Port Gigabit Unmanaged Desktop Switch with 8-Port PoE+
DONANIM ÖZELLİKLERİ
Arabirim • 8× 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı Fanless
Fiziksel Güvenlik Kilidi Yes
Harici Güç Kaynağı External Power Adapter(Output: 53.5VDC / 1.31A)
Paket Yönlendirme Hızı 11.904 Mpps
PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W
MAC Adres Tablosu 4K
Jumbo Frame 16 KB
Switching Kapasitesi 16 Gbps
Boyutlar ( W X D X H ) 6.2×4.0×1.0 in (158×101×25 mm)
Maks. Güç Tüketimi • 4.59 W (220/50 Hz no PD connected)
• 75.75 W (220/50 Hz with 65 W PD connected)
Max Heat Dissipation • 15.66 BTU/h (no PD connected)
• 258.46 BTU/h (with 65 W PD connected)
YAZILIM ÖZELLİKLERİ
İletim Metodu Store-And-Forward
Gelişmiş Fonksiyonlar • Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-8)
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği • DS108GP
• Power Adapter
• Installation Guide
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Tp-link LS109P 8-Port PoE+ ile 9-Port 10/100Mbps Masaüstü Switch
63 W PoE Bütçesi: Sekiz adet 10/100 Mbps 802.3af/at uyumlu PoE bağlantı noktası, IP kameralar, Access Point'ler ve IP telefonlar gibi sabit cihazları tek bir kabloyla kolayca bağlar ve bunlara güç sağlar. Her PoE bağlantı noktası tarafından 30 W'a kadar PoE çıkışı desteklenir.*
250 m'ye kadar PoE İletimi: Genişletme Modu ile PoE iletim mesafesi 250 metreye kadar ulaşır, geniş alanlarda güvenlik kamerası dağıtımı için mükemmeldir.**
PoE Otomatik Kurtarma: Düşen veya yanıt vermeyen PoE destekli cihazlarınızı otomatik olarak yeniden başlatır.
Daha Yüksek Güvenlik için Trafik Ayrımı: İzolasyon Modu, gözetleme ve kurcalamayı önlemek ve yayın fırtınalarını izole etmek için tek tıklamayla istemci trafiğinin ayrılmasını sağlar.
Tak ve Çalıştır: Yapılandırma gerektirmeden anında bağlantı için basitçe takın ve çalıştırın.
Sessiz Çalışma: Fansız tasarım güç tüketimini azaltır ve sessiz çalışma sağlar, gürültüye duyarlı evler veya işletmeler için idealdir.
Güvenilir Donanım Tasarımı: Dayanıklı metal kasa ve masa
DONANIM ÖZELLİKLERİ
Arabirim • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı Fanless
Kurulum • Desktop
• Wall Mounting
Güç Kaynağı External Power Adapter (Output: 53.5VDC / 1.31A)
PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• Power Supply: 63 W
LED Göstergesi • Power
• Link/Act
• PoE Status
• PoE MAX
Boyutlar ( W X D X H ) 6.7×3.9×1.1 in (171×98×27 mm)
Maks. Güç Tüketimi • 3.67 W (220 V/50 Hz no PD connected)
• 73.24 W (220 V/50 Hz with 63 W PD connected)
Max Heat Dissipation • 12.48 BTU/h (220 V/50 Hz no PD connected)
• 249 BTU/h (220 V/50 Hz with 63 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 1.8 Gbps
Paket Yönlendirme Hızı 1.3392 Mpps
MAC Adres Tablosu 2K
Jumbo Frame 1.5 KB
YAZILIM ÖZELLİKLERİ
Gelişmiş Özellikler • Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)
• Isolation Mode Button (Ports 1–8)
• PoE Auto Recovery Button (Ports 1–8)
• Compatible With IEEE 802.3af/at Compliant PDs
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• Green Technology
Transfer Metodu Store and Forward
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği • LS109P
• Power Adapter
• Installation Guide
• Rubber Feet
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
üstü/duvara montaj tasarımı farklı ortamlar için çok uygundur.

Tp-link LS108GP 8-Port Gigabit Desktop Switch with 8-Port PoE+
Full Gigabit Ports: Eight gigabit auto-negotiation ports provide up to 16 Gbps switching capacity.
62 W PoE Budget: Eight gigabit 802.3af/at-compliant PoE+ ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
Plug and Play: Simply plug and play for instant connectivity with no configuration required.
Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
DONANIM ÖZELLİKLERİ
Arabirim • 8× 10/100/1000Mbps RJ45 Ports (Ports 1–8 supports 802.3af/at PoE+)
• AUTO Negotiation
• AUTO MDI/MDIX
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Sayısı Fanless
Kurulum • Desktop
• Wall Mounting
Güç Kaynağı External Power Adapter (Output: 53.5 VDC / 1.31 A)
PoE Portları (RJ45) • Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8, up to 30 W PoE output per port
• PoE Budget: 62 W
Boyutlar ( W X D X H ) 6.2×3.9×1.0 in (158×99×25 mm)
Maks. Güç Tüketimi • 5.53 W (220 V/50 Hz. no PD connected)
• 71.61 W (220 V/50 Hz. with 62 W PD connected)
Max Heat Dissipation • 18.81 BTU/h (220 V/50 Hz. no PD connected)
• 243.47 BTU/h (220 V/50 Hz. with 62 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 16 Gbps
Paket Yönlendirme Hızı 11.9 Mpps
MAC Adres Tablosu 4K
Jumbo Frame 16 KB
YAZILIM ÖZELLİKLERİ
Gelişmiş Özellikler • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery Button (Ports 1-8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Green Technology
Transfer Metodu Store-And-Forward
DİĞERLERİ
Sertifika FCC, CE, RoHS
Paket İçeriği • LS108GP
• Power Adapter
• Installation Guide
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Tp-link Omada TL-SG2218P Omada 18-Port Gigabit Smart Switch with Poe
Omada 18-Port PoE+ Gigabit Smart Switch with 2 SFP Slots
PORT: 16× Gigabit RJ45 Ports, 2× Gigabit SFP Slots
SPEC: 802.3at/af, 150 W PoE Power, 1U 19-inch Rack-mountable Steel Case
FEATURE: Integration with Omada SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

TP-Link TL-SG2428P 24GE Smart PoE Switch, 4SFP, L3
250 W PoE Budget: Toplam 250W* güç kaynağına sahip 24× 802.3at/af-uyumlu PoE+ portları
Tam Gigabit Portlar: 24x gigabit PoE+ port ve 4x gigabit SFP Slotlar yüksek hızlı bağlantılar sunar.
Omada SDN Entegrasyonlu: Zero-Touch Provisioning (ZTP)**, Merkezi Bulut Yönetimi ve Akıllı İzleme.
Merkezi Yönetim: Büyük bir konfor ve kolay yönetim için bulut erişimi ve Omada uygulaması.
Statik Yönlendirme: Ağ kaynaklarının daha verimli kullanımı için dahili trafiğin yönlendirilmesine yardımcı olur.
Güçlü Güvenlik Stratejileri: IP-MAC-Port Bağlama, Port Güvenliği, DoS Savunma, Storm kontrolü, DHCP Snooping, 802.1X, Radius Kimlik Doğrulama ve daha fazlası.
Optimize Edilmiş Ses ve Video Uygulamaları: L2/L3/L4 QoS ve IGMP snooping.
IPv6: Çift IPv4/IPv6 stack, MLD snooping, IPv6 komşu keşfine sahip IPv6 desteği.
DONANIM ÖZELLİKLERİ
Standartlar ve Protokoller IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Arabirim • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
Fan Sayısı 2
Güç Kaynağı 100-240V AC, 50/60Hz
PoE+ Portları (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• Power Supply: 250 W
PoE Portları (RJ45) • Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• PoE Power Budget: 250 W*
Boyutlar ( W X D X H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi • 32.1 W (110 V/ 60 Hz with no PD connected)
• 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation 109.53 BTU/h (with no PD connected)
• 1052.94 BTU/h (with 250 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 56 Gbps
Bandwidth/Backplane 56 Gbps
Paket Yönlendirme Hızı 41.7 Mpps
MAC Adres Tablosu 8K
Paket Buffer Belleği 4.1 Mbit
Jumbo Frame 9KB
YAZILIM ÖZELLİKLERİ
Quality of Service • Support 802.1p CoS/DSCP priority
• Support 8 priority queues
• Queue scheduling: SP, WRR, SP+WRR
• Port/Flow- based Rate Limiting
• IPv6 QoS
• Voice VLAN
L2 ve L2+ Özellikleri • 32 IP Interfaces
- Support IPv4/IPv6 Interface
• Static Routing
- 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
Gelişmiş Özellikler • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
VLAN • VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Erişim Kontrol Listesi • Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Güvenlik • AAA
• 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC based access control
IPv6 • Dual IPv4/IPv6 stack
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
IPv6 Uygulamaları
MIBs • MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
YÖNETİM
Omada App Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
Cloud Access Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği TL-SG2428P
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet
Sistem Gereksinimleri Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Ortam • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

TPLINK TL-SL1218MP 16-Port 10/100Mbps + 2-Port Gigabit
DONANIM ÖZELLİKLERİ
Arabirim • 16 PoE+ 10/100 Mbps RJ45 Ports
• 2× 10/100/1000 Mbps RJ45 Ports
• 2× Combo Gigabit SFP Slots
Ağ Medyası • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF
Fan Sayısı 2 Fans
Fiziksel Güvenlik Kilidi Yes
Güç Kaynağı 100–240V AC, 50/60 Hz
PoE+ Portları (RJ45) • Standard: 802.3at/802.3af compliant
• PoE Ports: Ports 1–16
• PoE Power Budget: 250 W
Boyutlar ( W X D X H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Maks. Güç Tüketimi • 14.97 W (220/50Hz. no PD connected)
• 285.8 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation • 51.05 BTU/h (no PD connected)
• 974.58 BTU/h (with 250 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 7.2 Gbps
Paket Yönlendirme Hızı 5.36 Mpps
MAC Adres Tablosu 8K
Jumbo Frame 10 KB
YAZILIM ÖZELLİKLERİ
Gelişmiş Özellikler • Compatible With IEEE 802.3at/af Compliant PDs
• Extend Mode (Up to 250m PoE power supply and data transmission)
• Priority Mode
• Isolation Mode
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
İletim Metodu Store-And-Forward
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği • TL-SL1218MP
• Power Cable
• Installation Guide
• Two mounting brackets and the fittings
Ortam • Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
